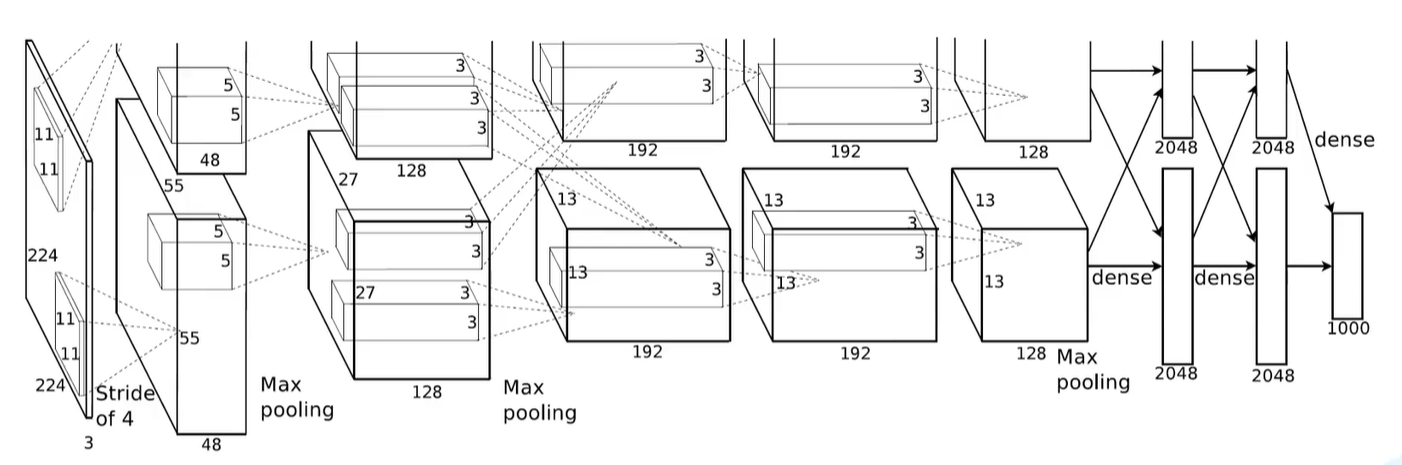

一、over roll archi

Alexnet——2012年——标志性网络
该网络的亮点在于：
（1）首次利用GPU进行网络加速训练。
（2）使用了ReLU激活函数，而不是传统的Sigmoid激活函数以及Tanh激活函数。（smoid求导比较麻烦而且当网路比较深的时候会出现梯度消失）
（3）使用了LRN局部响应归一化。
（4）在全连接层的前两层中使用了Dropout随机失活神经元操作，以减少过拟合。

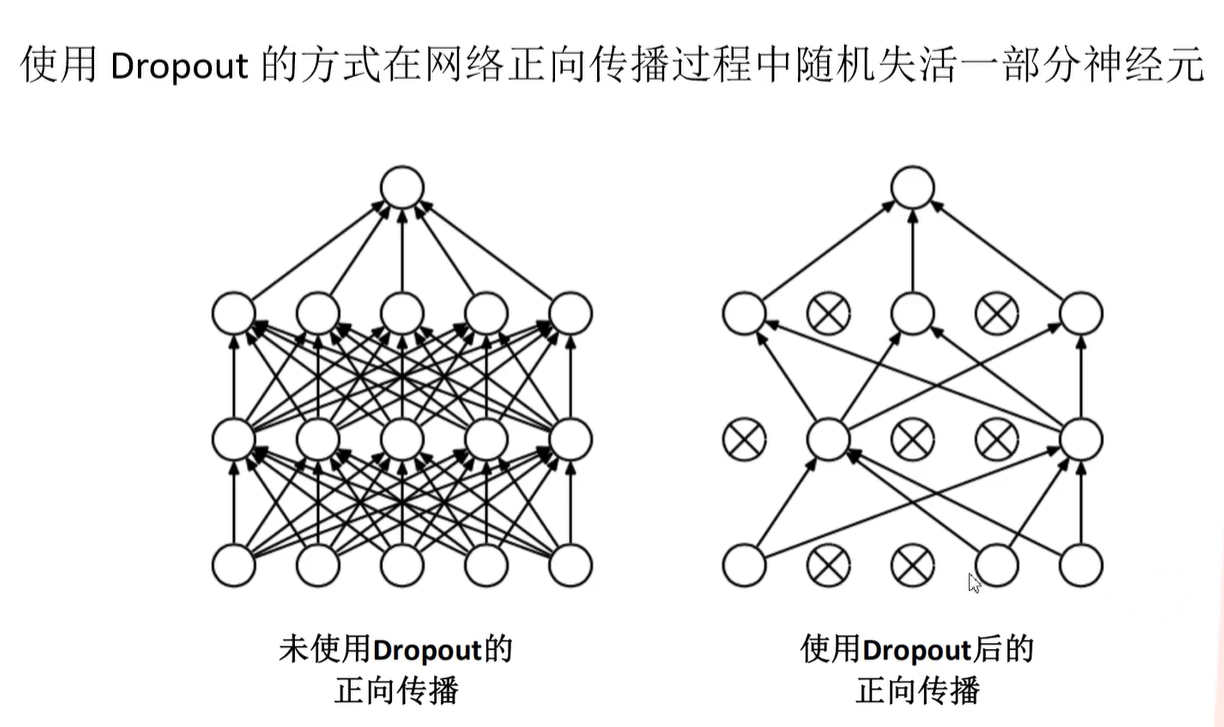

dropout解释：使用dropout后，在每一层中随机失活一些神经元——减少训练参数从而减少over fitting

; 二、结构详解

1. Conv1

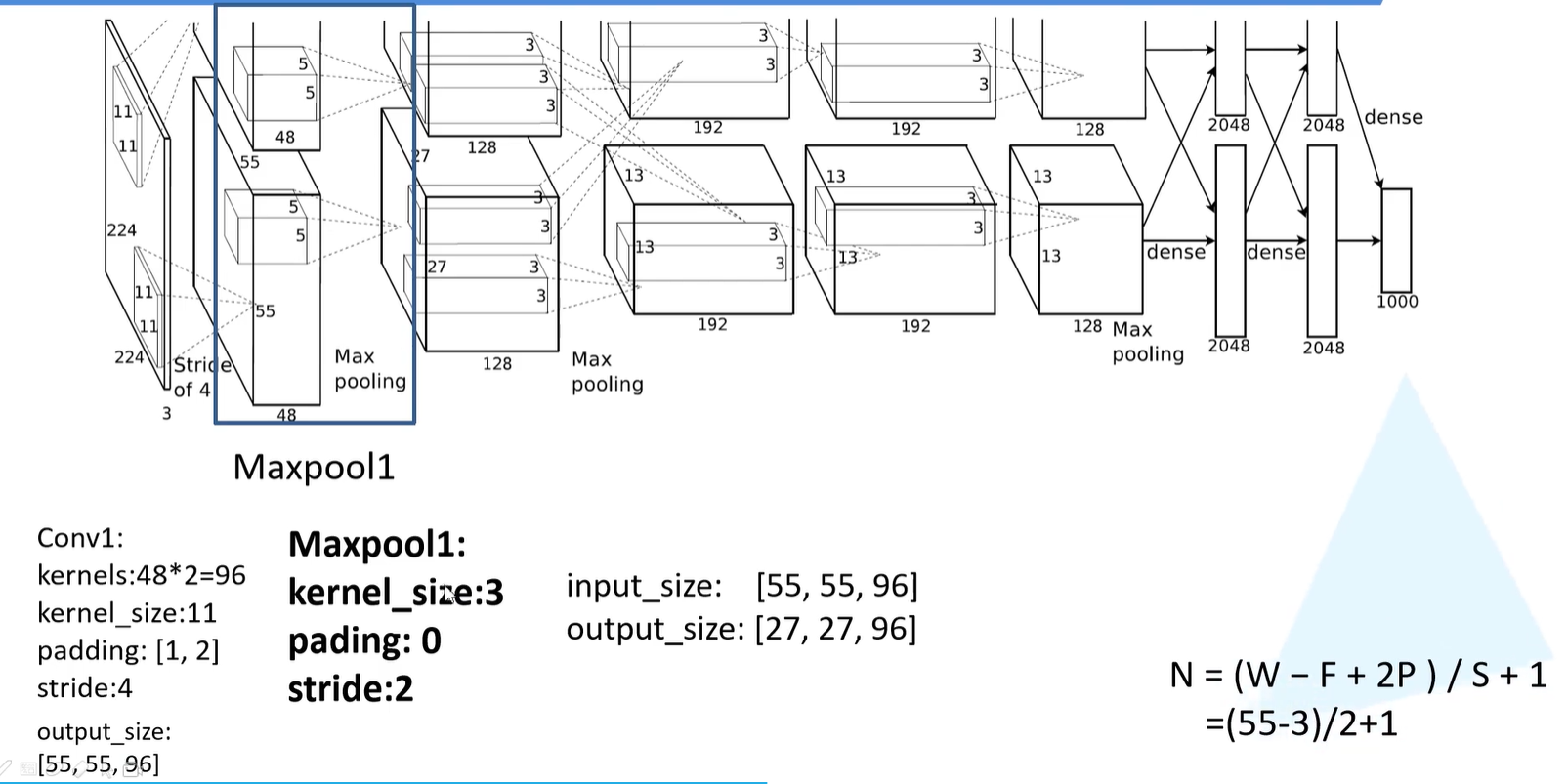

; 2. Maxpool1

3. Conv2

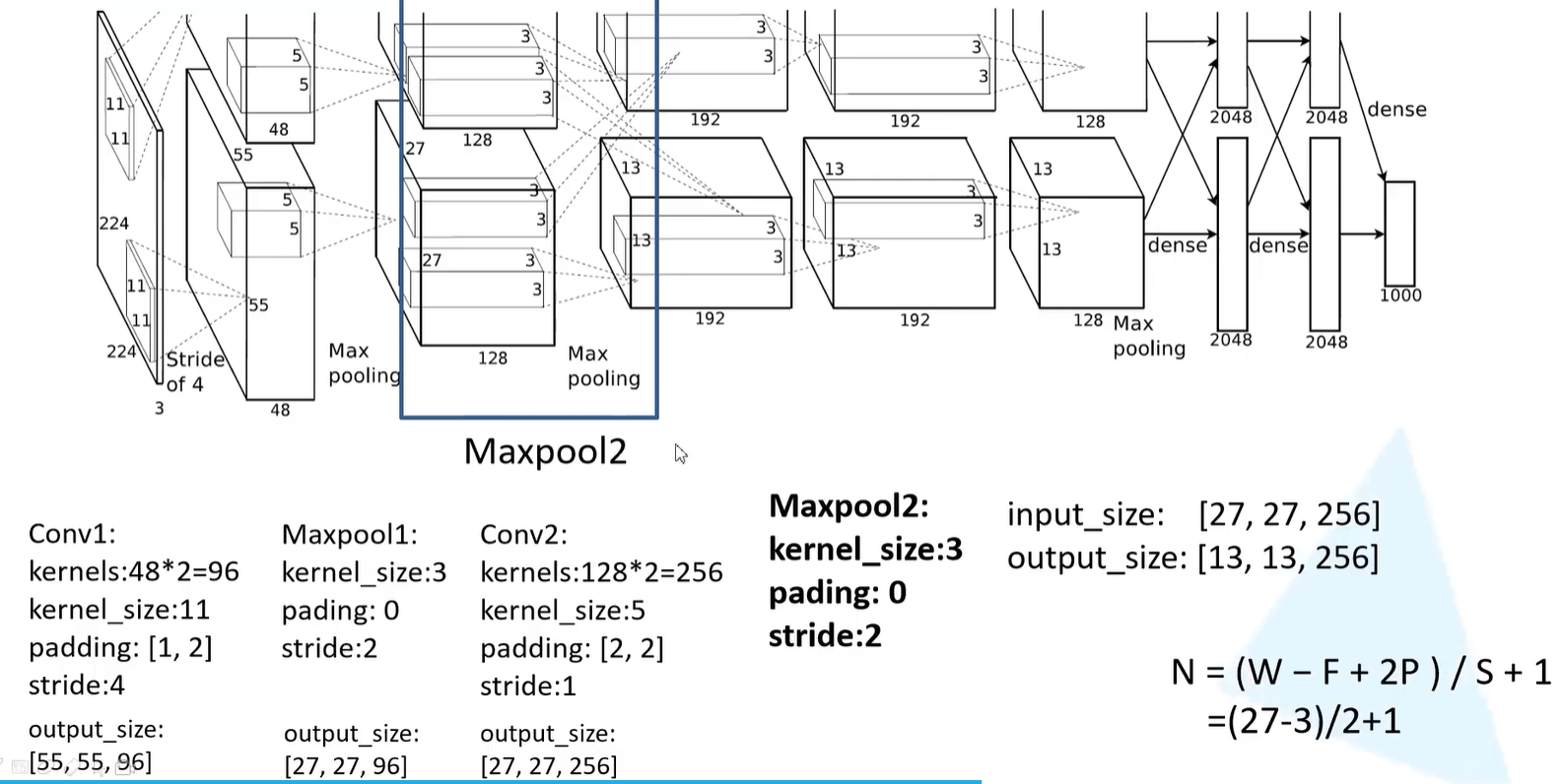

; 4. Maxpool2

5. Conv3

; 6. Conv4

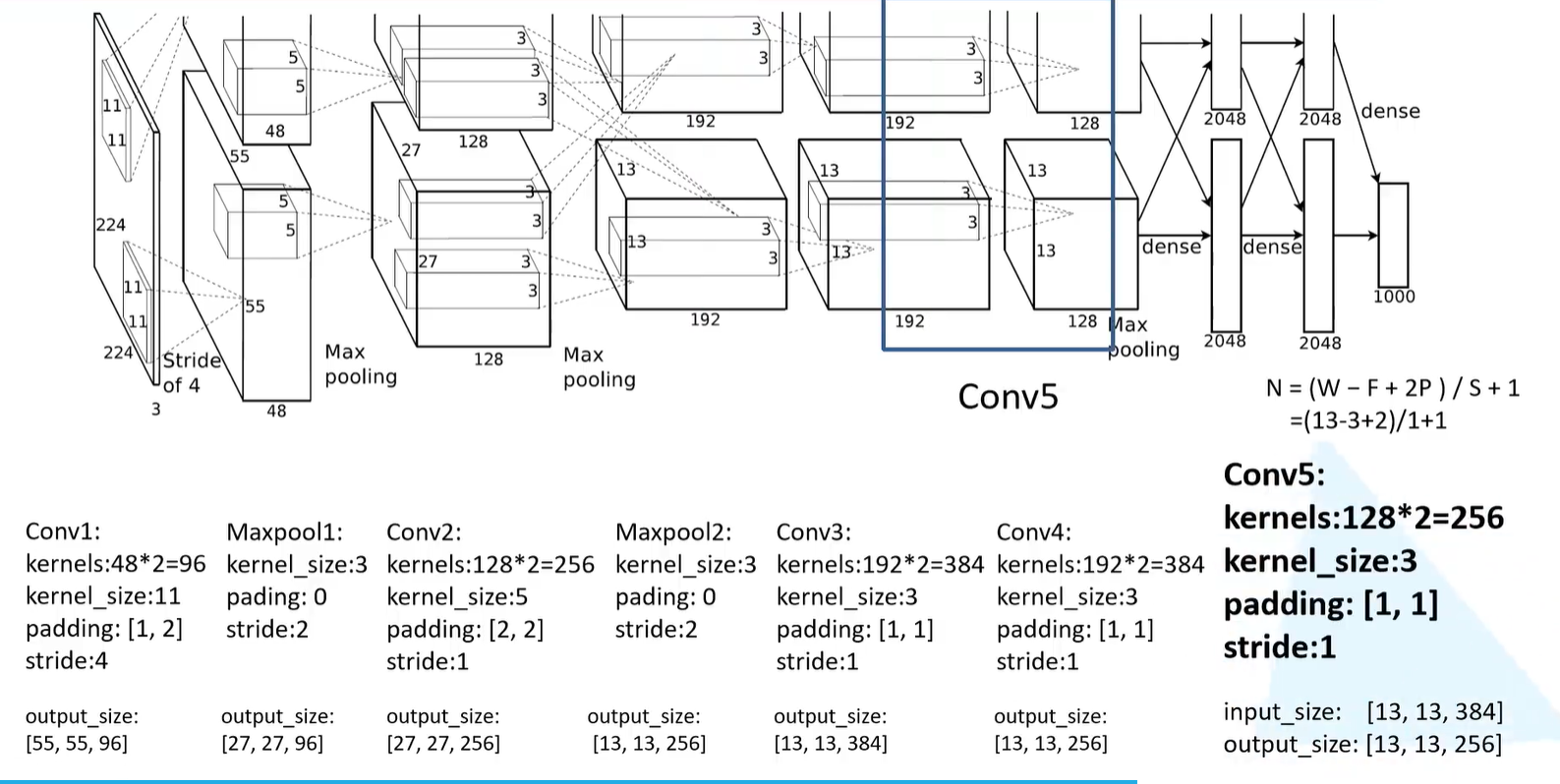

7. Conv5

; 8. Maxpool3

9. FC1

描述一下： 这里使用4096个神经元，对256个大小为6 _6特征图，进行一个全链接，也就是将6_6大小的特征图，进行卷积变为一个特征点,然后对于4096个神经元中的一个点，是由256个特征图中某些个特征图卷积之后得到的特征点乘以相应的权重之后，再加上一个偏置得到. 再进行一个dropout随机从4096个节点中丢掉一些节点信息（也就是值清0），然后就得到新的4096个神经元.

; 10. FC2

和fc1类似.

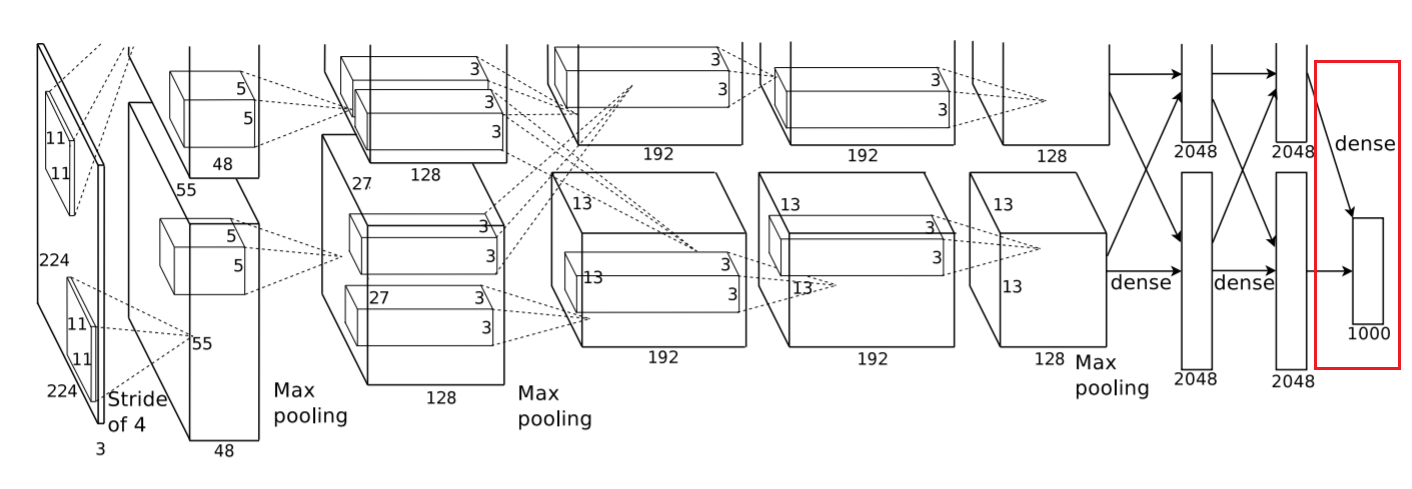

11. FC3

采用的是1000个神经元，然后对fc7中4096个神经元进行全链接，然后会通过高斯过滤器，得到1000个float型的值，也就是我们所看到的预测的可能性,

如果是训练模型的话，会通过标签label进行对比误差，然后求解出残差，再通过链式求导法则，将残差通过求解偏导数逐步向上传递，并将权重进行推倒更改，类似与BP网络思虑，然后会逐层逐层的调整权重以及偏置.

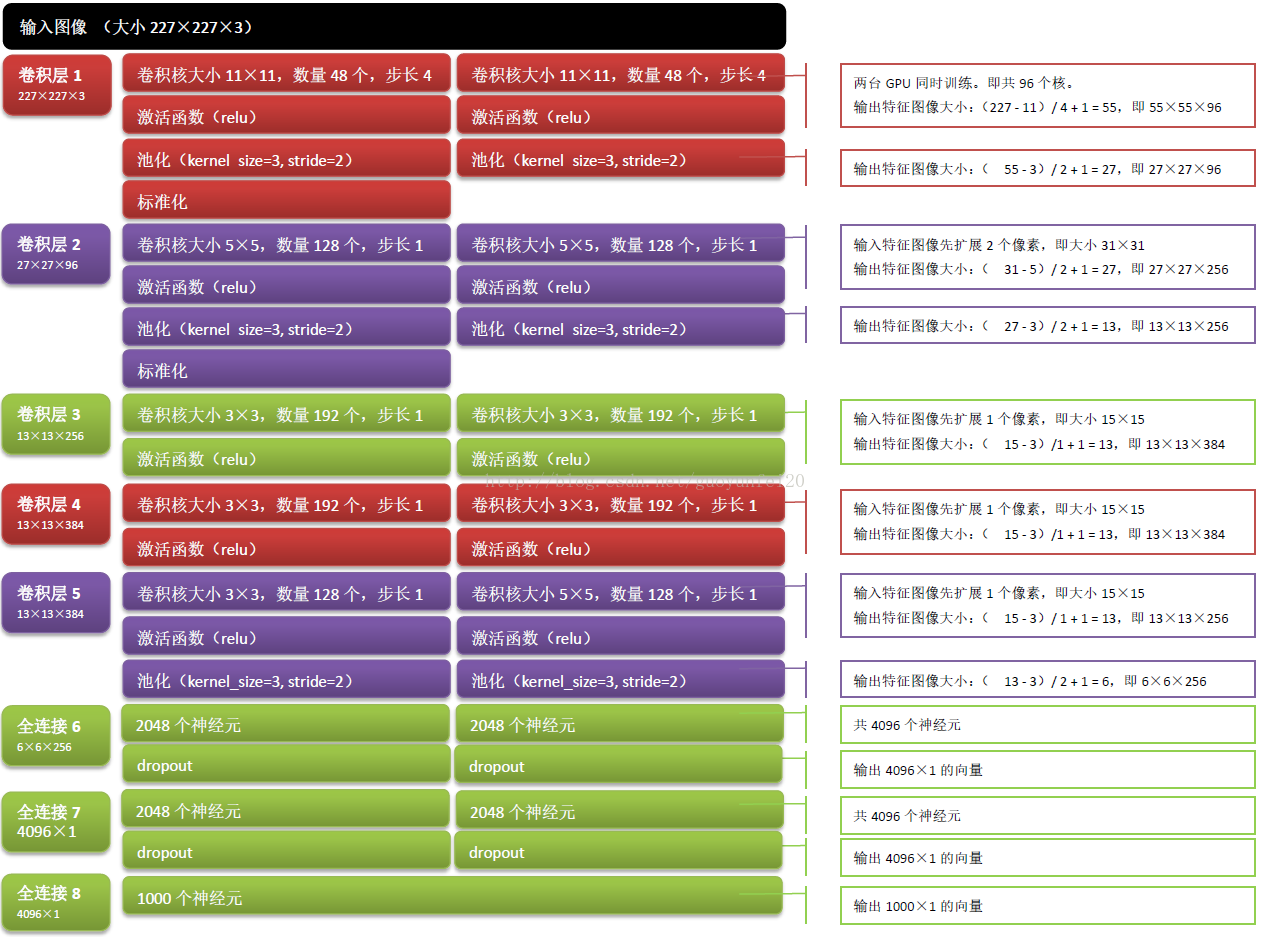

; 10. summary

三、tensorflow实现

model：

tensorflow实现：

import tensorflow as tf

def alexnet(x, keep_prob, num_classes):

    with tf.name_scope('conv1') as scope:
        kernel = tf.Variable(tf.truncated_normal([11, 11, 3, 96], dtype=tf.float32,
                                             stddev=1e-1), name='weights')
        conv = tf.nn.conv2d(x, kernel, [1, 4, 4, 1], padding='SAME')
        biases = tf.Variable(tf.constant(0.0, shape=[96], dtype=tf.float32),
                             trainable=True, name='biases')
        bias = tf.nn.bias_add(conv, biases)
        conv1 = tf.nn.relu(bias, name=scope)

    with tf.name_scope('lrn1') as scope:
        lrn1 = tf.nn.local_response_normalization(conv1,
                                                  alpha=1e-4,
                                                  beta=0.75,
                                                  depth_radius=2,
                                                  bias=2.0)

    with tf.name_scope('pool1') as scope:
        pool1 = tf.nn.max_pool(lrn1,
                             ksize=[1, 3, 3, 1],
                             strides=[1, 2, 2, 1],
                             padding='VALID')

    with tf.name_scope('conv2') as scope:
        pool1_groups = tf.split(axis=3, value = pool1, num_or_size_splits = 2)
        kernel = tf.Variable(tf.truncated_normal([5, 5, 48, 256], dtype=tf.float32,
                                                 stddev=1e-1), name='weights')
        kernel_groups = tf.split(axis=3, value = kernel, num_or_size_splits = 2)
        conv_up = tf.nn.conv2d(pool1_groups[0], kernel_groups[0], [1,1,1,1], padding='SAME')
        conv_down = tf.nn.conv2d(pool1_groups[1], kernel_groups[1], [1,1,1,1], padding='SAME')
        biases = tf.Variable(tf.constant(0.0, shape=[256], dtype=tf.float32),
                             trainable=True, name='biases')
        biases_groups = tf.split(axis=0, value=biases, num_or_size_splits=2)
        bias_up = tf.nn.bias_add(conv_up, biases_groups[0])
        bias_down = tf.nn.bias_add(conv_down, biases_groups[1])
        bias = tf.concat(axis=3, values=[bias_up, bias_down])
        conv2 = tf.nn.relu(bias, name=scope)

    with tf.name_scope('lrn2') as scope:
        lrn2 = tf.nn.local_response_normalization(conv2,
                                                  alpha=1e-4,
                                                  beta=0.75,
                                                  depth_radius=2,
                                                  bias=2.0)

    with tf.name_scope('pool2') as scope:
        pool2 = tf.nn.max_pool(lrn2,
                             ksize=[1, 3, 3, 1],
                             strides=[1, 2, 2, 1],
                             padding='VALID')

    with tf.name_scope('conv3') as scope:
        kernel = tf.Variable(tf.truncated_normal([3, 3, 256, 384],
                                                 dtype=tf.float32,
                                                 stddev=1e-1), name='weights')
        conv = tf.nn.conv2d(pool2, kernel, [1, 1, 1, 1], padding='SAME')
        biases = tf.Variable(tf.constant(0.0, shape=[384], dtype=tf.float32),
                             trainable=True, name='biases')
        bias = tf.nn.bias_add(conv, biases)
        conv3 = tf.nn.relu(bias, name=scope)

    with tf.name_scope('conv4') as scope:
        conv3_groups = tf.split(axis=3, value=conv3, num_or_size_splits=2)
        kernel = tf.Variable(tf.truncated_normal([3, 3, 192, 384],
                                                 dtype=tf.float32,
                                                 stddev=1e-1), name='weights')
        kernel_groups = tf.split(axis=3, value=kernel, num_or_size_splits=2)
        conv_up = tf.nn.conv2d(conv3_groups[0], kernel_groups[0], [1, 1, 1, 1], padding='SAME')
        conv_down = tf.nn.conv2d(conv3_groups[1], kernel_groups[1], [1,1,1,1], padding='SAME')
        biases = tf.Variable(tf.constant(0.0, shape=[384], dtype=tf.float32),
                             trainable=True, name='biases')
        biases_groups = tf.split(axis=0, value=biases, num_or_size_splits=2)
        bias_up = tf.nn.bias_add(conv_up, biases_groups[0])
        bias_down = tf.nn.bias_add(conv_down, biases_groups[1])
        bias = tf.concat(axis=3, values=[bias_up,bias_down])
        conv4 = tf.nn.relu(bias, name=scope)

    with tf.name_scope('conv5') as scope:
        conv4_groups = tf.split(axis=3, value=conv4, num_or_size_splits=2)
        kernel = tf.Variable(tf.truncated_normal([3, 3, 192, 256],
                                                 dtype=tf.float32,
                                                 stddev=1e-1), name='weights')
        kernel_groups = tf.split(axis=3, value=kernel, num_or_size_splits=2)
        conv_up = tf.nn.conv2d(conv4_groups[0], kernel_groups[0], [1, 1, 1, 1], padding='SAME')
        conv_down = tf.nn.conv2d(conv4_groups[1], kernel_groups[1], [1,1,1,1], padding='SAME')
        biases = tf.Variable(tf.constant(0.0, shape=[256], dtype=tf.float32),
                             trainable=True, name='biases')
        biases_groups = tf.split(axis=0, value=biases, num_or_size_splits=2)
        bias_up = tf.nn.bias_add(conv_up, biases_groups[0])
        bias_down = tf.nn.bias_add(conv_down, biases_groups[1])
        bias = tf.concat(axis=3, values=[bias_up,bias_down])
        conv5 = tf.nn.relu(bias, name=scope)

    with tf.name_scope('pool5') as scope:
        pool5 = tf.nn.max_pool(conv5,
                             ksize=[1, 3, 3, 1],
                             strides=[1, 2, 2, 1],
                             padding='VALID',)

    with tf.name_scope('flattened6') as scope:
        flattened = tf.reshape(pool5, shape=[-1, 6*6*256])

    with tf.name_scope('fc6') as scope:
        weights = tf.Variable(tf.truncated_normal([6*6*256, 4096],
                                                  dtype=tf.float32,
                                                  stddev=1e-1), name='weights')
        biases = tf.Variable(tf.constant(0.0, shape=[4096], dtype=tf.float32),
                            trainable=True, name='biases')
        bias = tf.nn.xw_plus_b(flattened, weights, biases)
        fc6 = tf.nn.relu(bias)

    with tf.name_scope('dropout6') as scope:
        dropout6 = tf.nn.dropout(fc6, keep_prob)

    with tf.name_scope('fc7') as scope:
        weights = tf.Variable(tf.truncated_normal([4096,4096],
                                                 dtype=tf.float32,
                                                 stddev=1e-1), name='weights')
        biases = tf.Variable(tf.constant(0.0, shape=[4096], dtype=tf.float32),
                            trainable=True, name='biases')
        bias = tf.nn.xw_plus_b(dropout6, weights, biases)
        fc7 = tf.nn.relu(bias)

    with tf.name_scope('dropout7') as scope:
       dropout7 = tf.nn.dropout(fc7, keep_prob)

    with tf.name_scope('fc8') as scope:
        weights = tf.Variable(tf.truncated_normal([4096, num_classes],
                                                  dtype=tf.float32,
                                                  stddev=1e-1), name='weights')
        biases = tf.Variable(tf.constant(0.0, shape=[num_classes], dtype=tf.float32),
                                        trainable=True, name='biases')
        fc8 = tf.nn.xw_plus_b(dropout7, weights, biases)

    return fc8

keras实现：（v1是是使用keras function api的方法搭建、v2是subclasses也就是子类的方法搭建-类似pytorch）

from tensorflow.keras import layers, models, Model, Sequential

def AlexNet_v1(im_height=224, im_width=224, num_classes=1000):

    input_image = layers.Input(shape=(im_height, im_width, 3), dtype="float32")
    x = layers.ZeroPadding2D(((1, 2), (1, 2)))(input_image)
    x = layers.Conv2D(48, kernel_size=11, strides=4, activation="relu")(x)
    x = layers.MaxPool2D(pool_size=3, strides=2)(x)
    x = layers.Conv2D(128, kernel_size=5, padding="same", activation="relu")(x)
    x = layers.MaxPool2D(pool_size=3, strides=2)(x)
    x = layers.Conv2D(192, kernel_size=3, padding="same", activation="relu")(x)
    x = layers.Conv2D(192, kernel_size=3, padding="same", activation="relu")(x)
    x = layers.Conv2D(128, kernel_size=3, padding="same", activation="relu")(x)
    x = layers.MaxPool2D(pool_size=3, strides=2)(x)

    x = layers.Flatten()(x)
    x = layers.Dropout(0.2)(x)
    x = layers.Dense(2048, activation="relu")(x)
    x = layers.Dropout(0.2)(x)
    x = layers.Dense(2048, activation="relu")(x)
    x = layers.Dense(num_classes)(x)
    predict = layers.Softmax()(x)

    model = models.Model(inputs=input_image, outputs=predict)
    return model

class AlexNet_v2(Model):
    def __init__(self, num_classes=1000):
        super(AlexNet_v2, self).__init__()
        self.features = Sequential([
            layers.ZeroPadding2D(((1, 2), (1, 2))),
            layers.Conv2D(48, kernel_size=11, strides=4, activation="relu"),
            layers.MaxPool2D(pool_size=3, strides=2),
            layers.Conv2D(128, kernel_size=5, padding="same", activation="relu"),
            layers.MaxPool2D(pool_size=3, strides=2),
            layers.Conv2D(192, kernel_size=3, padding="same", activation="relu"),
            layers.Conv2D(192, kernel_size=3, padding="same", activation="relu"),
            layers.Conv2D(128, kernel_size=3, padding="same", activation="relu"),
            layers.MaxPool2D(pool_size=3, strides=2)])

        self.flatten = layers.Flatten()
        self.classifier = Sequential([
            layers.Dropout(0.2),
            layers.Dense(1024, activation="relu"),
            layers.Dropout(0.2),
            layers.Dense(128, activation="relu"),
            layers.Dense(num_classes),
            layers.Softmax()
        ])

    def call(self, inputs, **kwargs):
        x = self.features(inputs)
        x = self.flatten(x)
        x = self.classifier(x)
        return x

-

pytorch实现-reference：
https://github.com/dansuh17/alexnet-pytorch

https://github.com/sloth2012/AlexNet

Original: https://blog.csdn.net/weixin_39589455/article/details/122362687
Author: 别出BUG求求了
Title: Alexnet详解以及tesnsorflow实现alexnet；什么是alexnet alexnet能做什么；alexnet教程
