【MySQL实战】基于100万电商用户的1亿条行为数据分析——自发秩序

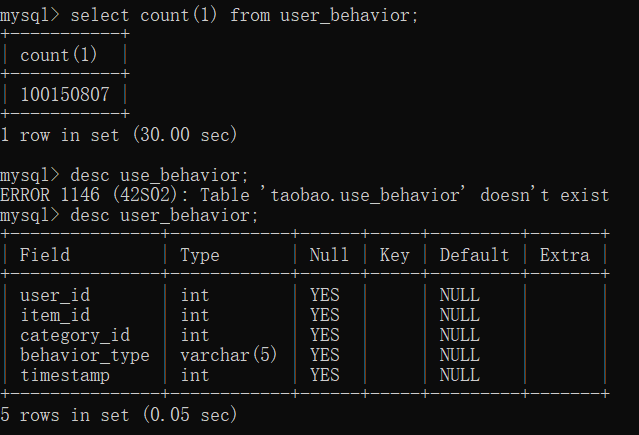

use taobao;
desc user_behavior;

SELECT *
FROM user_behavior
LIMIT 5;

-- timestamp同数据类型的timestamp重名，需修改
/*
修改字段名
alter table 表名 change 旧字段名 新字段名 新数据类型
*/
ALTER TABLE user_behavior CHANGE timestamp timestamps int(14);
desc user_behavior;

-- 检查空值
SELECT *
FROM user_behavior
WHERE user_id IS NULL;

SELECT *
FROM user_behavior
WHERE item_id IS NULL;

SELECT *
FROM user_behavior
WHERE category_id IS NULL;

SELECT *
FROM user_behavior
WHERE behavior_type IS NULL;

SELECT *
FROM user_behavior
WHERE timestamps IS NULL;

-- 检查重复值（这里查询的是组合的重复值）
/*
重复值查询
select 检查的字段
from 表
group by 检查的字段
having count(检查字段)>1
*/
SELECT user_id,item_id,timestamps
FROM user_behavior
GROUP BY user_id,item_id,timestamps
HAVING COUNT(*)>1;

-- 去重
/*
添加一个字段并且居于首位
alter table 表名 add 字段名 字段类型 first
*/
ALTER TABLE user_behavior ADD id int FIRST;
SELECT *
FROM user_behavior
LIMIT 5;
/*
修改字段为主键并且自增
    alter table 表名 modify 字段名 字段类型 primary key auto_increment
对已经存在的表，添加主键约束
    alter table 表名 modify 字段名 字段类型 primary key
自增
    auto_increment
*/
ALTER TABLE user_behavior MODIFY id INT PRIMARY KEY auto_increment;

/*
数据的去重

1 找到重复值，并命名

        1.1 用group by 将字段组合起来，会将重复的值压缩为一条

        1.2 用count(*)查找重复的数量

        1.3 将重复的字段展现出来，并且找到重复值中最小的id号

        1.4 将找到的重复值作为子查询命名

2 去重

        2.1 用where筛选

        2.2 子查询的字段和外查询的字段相同时删除数据，必须同时满足数据

        2.3 user_behavior.id > t2.id （删除重复值的范围，只保留group by中他的最小id的数据）

注意：delete from后跟子查询，就不应使用DELETE FROM 表，而应该DELETE 表 FROM 表，

*/
DELETE user_behavior
FROM user_behavior,
(
SELECT user_id,item_id,timestamps,MIN(id) id
FROM user_behavior
GROUP BY user_id,item_id,timestamps
HAVING COUNT(*)>1
) t2
WHERE user_behavior.user_id = t2.user_id
AND user_behavior.item_id = t2.item_id
AND user_behavior.timestamps = t2.timestamps
AND user_behavior.id > t2.id;

-- 新增字段：date time hour
-- 更改buffer值（更改缓冲值的大小）

-- 查看缓冲值现在的大小
/*
查看缓冲池，并对他进行修改
1 show variables 查看系统变量及其值

2 like模糊查询

3 set global 全局变量的设置，后面跟赋值公式
*/
SHOW VARIABLES LIKE '%_buffer%';
-- 设缓冲值为10G
SET GLOBAL innodb_buffer_pool_size = 10700000000;

-- TIMESTAMP(0) 0的意思是秒后面的位数为0
-- 添加一个时间字段，并且秒后面的位数为0
ALTER TABLE user_behavior ADD datetimes TIMESTAMP(0);
-- int型的TIMESTAMP改为日期型的TIMESTAMP（天啦，运行了5个小时，我要减少一下数据量了）
/*
将int型的TIMESTAMP改为日期型的TIMESTAMP

1 更新已有数据

update 表名 set 字段=值

2 int的时间戳修改为日期型

from_unixtime(时间戳)
*/
UPDATE user_behavior SET datetimes = FROM_UNIXTIME(timestamps);

-- 数据过多删除某些行,只保留50w数据
DELETE FROM user_behavior
WHERE id > 500000;

-- 插入dates、times、hours
-- 添加 日期、时间、小时的字段，并设置数据类型和长度
ALTER TABLE user_behavior ADD dates char(10);
ALTER TABLE user_behavior ADD times char(8);
ALTER TABLE user_behavior ADD hours char(2);

/* SUBSTRING（str，start, length）：str：代表字符串，start：代表是从第几位开始截取，length：代表截取几位数
*/
UPDATE user_behavior set dates = SUBSTRING(datetimes,1,10),
times = SUBSTRING(datetimes,12,8),
hours = SUBSTRING(datetimes,12,2);

-- 去异常——时间范围的异常（2017.11.25-12.3）
SELECT MAX(datetimes),MIN(datetimes)
FROM user_behavior;

-- 异常的去除方法
DELETE FROM user_behavior
WHERE datetimes < "2017-11-25 00:00:00"
OR datetimes > "2017-12-03 23:59:59";

-- 数据概览
DESC user_behavior;
SELECT *
FROM user_behavior
LIMIT 5;
SELECT COUNT(*) FROM user_behavior; #499779条数据

获客情况

【MySQL实战】基于100万电商用户的1亿条行为数据分析——自发秩序

-- 创建临时表，临时表的字段名和原表相同，但是无数据
/*
创建临时表格，并复制原表的字段名，不复制数据
create table 临时表名 like 原表
*/
CREATE TABLE temp_behavior
LIKE user_behavior;

-- 截取原表中的100000条数据插入临时表中
/*
截取原表的数据插入临时表中
insert into 临时表 select 列 from 表 limit 数据量
*/
INSERT INTO temp_behavior
SELECT *
FROM user_behavior
LIMIT 100000;

-- 查看临时表数据
SELECT *
FROM temp_behavior;

-- PV 页面浏览量 每天页面的点击数
SELECT dates,COUNT(*) "pv"
FROM temp_behavior
WHERE behavior_type = "pv"
GROUP BY dates
ORDER BY dates;

-- UV 独立的访客数 去除每天相同客户的点击
SELECT dates,COUNT(DISTINCT user_id) "uv"
FROM temp_behavior
WHERE behavior_type = "pv"
GROUP BY dates
ORDER BY dates;

-- uv、pv
SELECT dates,
    COUNT(*) "pv",
    COUNT(DISTINCT user_id) "uv",
    ROUND(COUNT(*)/COUNT(DISTINCT user_id),1) "pv/uv"
FROM temp_behavior
WHERE behavior_type = "pv"
GROUP BY dates
ORDER BY dates;

-- 创建获客情况表格
/*
创建表格并定义字段
create table 表名（字段1 字段类型1 ,字段2 字段类型2）

decimal型（十进制小数型）比float和double计算精度高，使用空间少，常用于金融运算。
1 浮点型会四舍五入，decimal则不会
2 decimal(a,b)
    a：一共保留几位数
    b:小数点后保留几位数
*/

CREATE TABLE pv_uv_puv(
dates char(10),
pv int(9),
uv int(9),
puv decimal(10,1)
);

-- 取原表中的数据插入获客情况表
/*
round(a,b)

        a：要处理的数

        b：保留几位小数
*/
INSERT INTO pv_uv_puv
SELECT dates,
    COUNT(*) "pv",
    COUNT(DISTINCT user_id) "uv",
    ROUND(COUNT(*)/COUNT(DISTINCT user_id),1) "pv/uv"
FROM user_behavior
WHERE behavior_type = "pv"
GROUP BY dates
ORDER BY dates;

-- 查看获客情况表
SELECT *
FROM pv_uv_puv
ORDER BY dates;

-- *本次获客情况表无空值，若出现空值，可使用以下办法
DELETE FROM pv_uv_puv WHERE dates IS NULL;

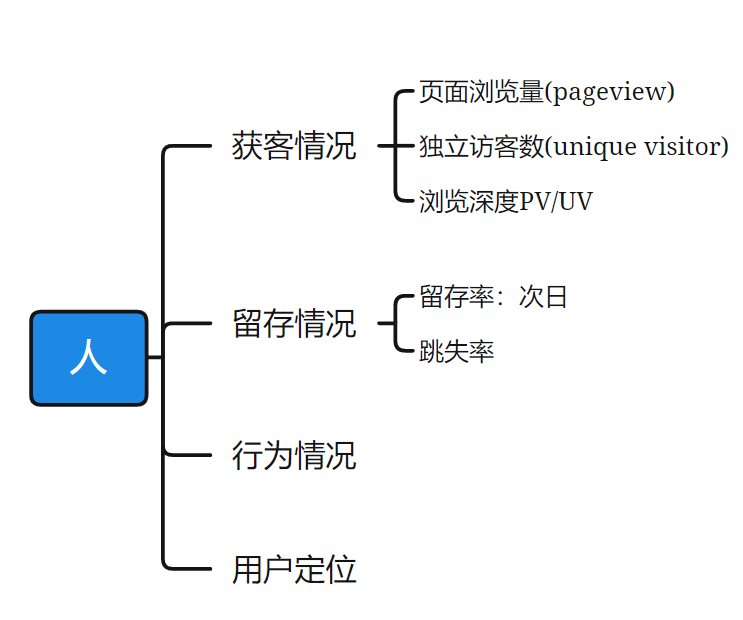

留存情况（list23）

【MySQL实战】基于100万电商用户的1亿条行为数据分析——自发秩序

SELECT * FROM user_behavior WHERE dates IS NULL;

SELECT *
FROM temp_behavior;
-- 留存率：活跃用户留存率，计算次日留存率

-- 用户活跃日期
SELECT user_id,dates
FROM temp_behavior
GROUP BY user_id,dates;

-- 自关联
SELECT * FROM
(SELECT user_id,dates
FROM temp_behavior
GROUP BY user_id,dates
) a
,(SELECT user_id,dates
FROM temp_behavior
GROUP BY user_id,dates)
b
WHERE a.user_id=b.user_id;

-- 筛选
SELECT * FROM
(SELECT user_id,dates
FROM temp_behavior
GROUP BY user_id,dates
) a
,(SELECT user_id,dates
FROM temp_behavior
GROUP BY user_id,dates)
b
WHERE a.user_id=b.user_id AND a.dates < b.dates;

-- 留存数
SELECT a.dates,
COUNT(if(datediff(b.dates,a.dates)=0,b.user_id,NULL)) rentention0,
COUNT(if(datediff(b.dates,a.dates)=1,b.user_id,NULL)) rentention1
FROM
(SELECT user_id,dates
FROM temp_behavior
GROUP BY user_id,dates
) a
,(SELECT user_id,dates
FROM temp_behavior
GROUP BY user_id,dates)
b
WHERE a.user_id=b.user_id AND a.dates

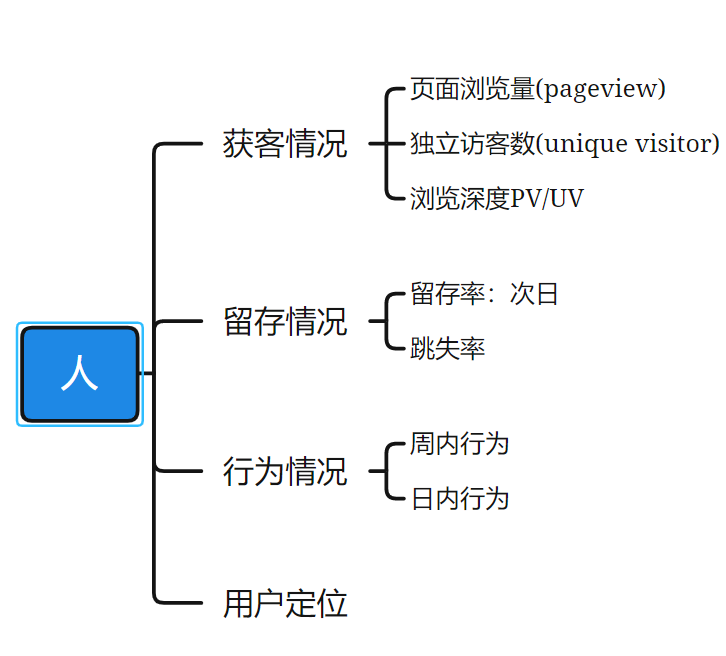

时间序列分析（list23）

【MySQL实战】基于100万电商用户的1亿条行为数据分析——自发秩序

1.在sql中创建date_hour_behavior

SELECT dates,hours,
            COUNT(IF(behavior_type = 'pv',behavior_type,NULL)) 'pv',
            COUNT(IF(behavior_type = 'cart',behavior_type,NULL)) 'cart',
            COUNT(IF(behavior_type = 'fav',behavior_type,NULL)) 'fav',
            COUNT(IF(behavior_type = 'buy',behavior_type,NULL)) 'buy'

FROM temp_behavior
GROUP BY dates,hours
ORDER BY dates,hours

-- 存储
CREATE TABLE date_hour_behavior AS
(SELECT dates,hours,
            COUNT(IF(behavior_type = 'pv',behavior_type,NULL)) 'pv',
            COUNT(IF(behavior_type = 'cart',behavior_type,NULL)) 'cart',
            COUNT(IF(behavior_type = 'fav',behavior_type,NULL)) 'fav',
            COUNT(IF(behavior_type = 'buy',behavior_type,NULL)) 'buy'

FROM user_behavior
GROUP BY dates,hours
ORDER BY dates,hours)

-- 检查
SELECT * FROM date_hour_behavior

2.tableau

2.1 分析用户的周内行为

11月25日、26日，12月2日、3日是周末，用户在周末的各种行为均高于工作日

【MySQL实战】基于100万电商用户的1亿条行为数据分析——自发秩序

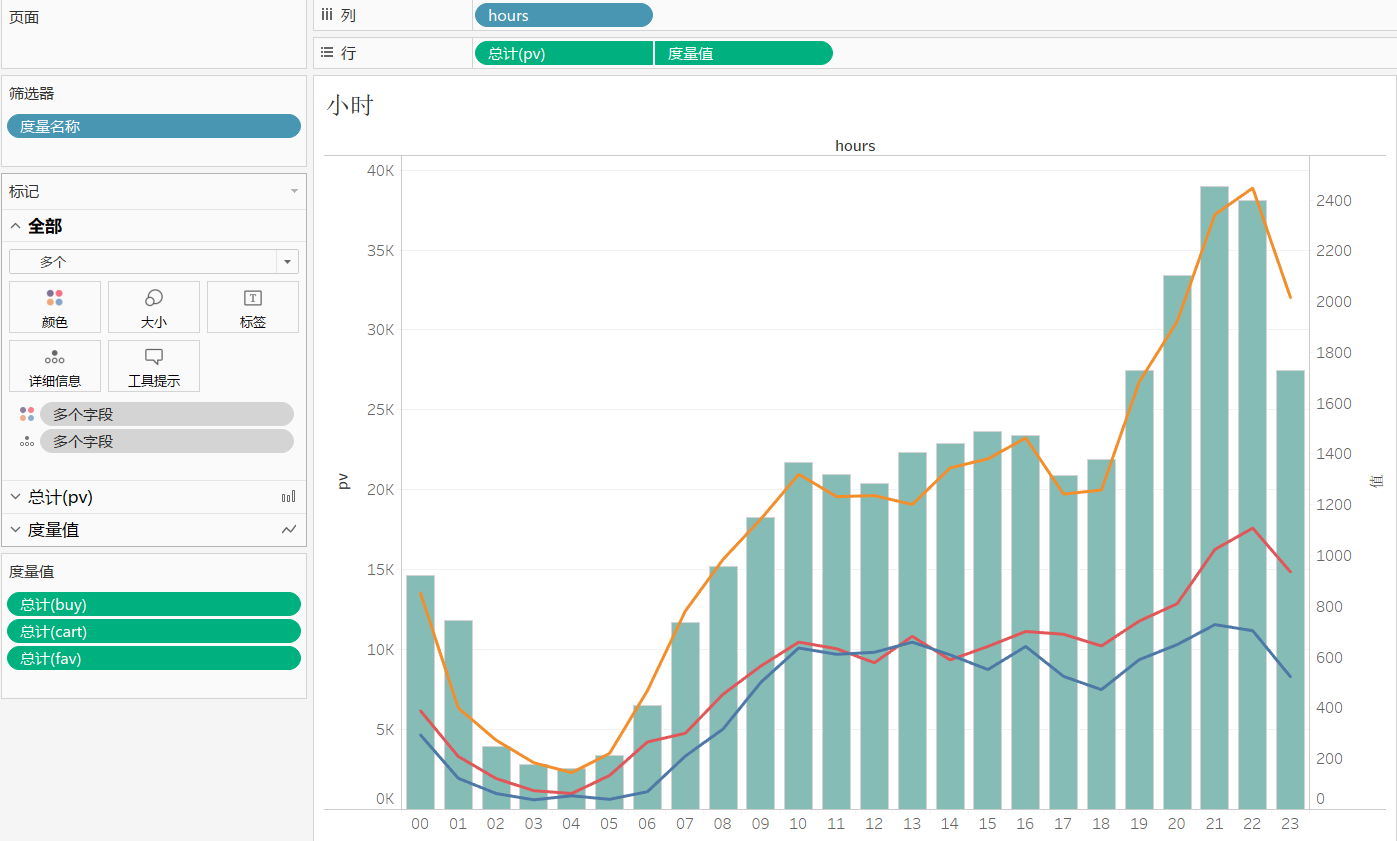

2.2 分析用户的小时行为

【MySQL实战】基于100万电商用户的1亿条行为数据分析——自发秩序

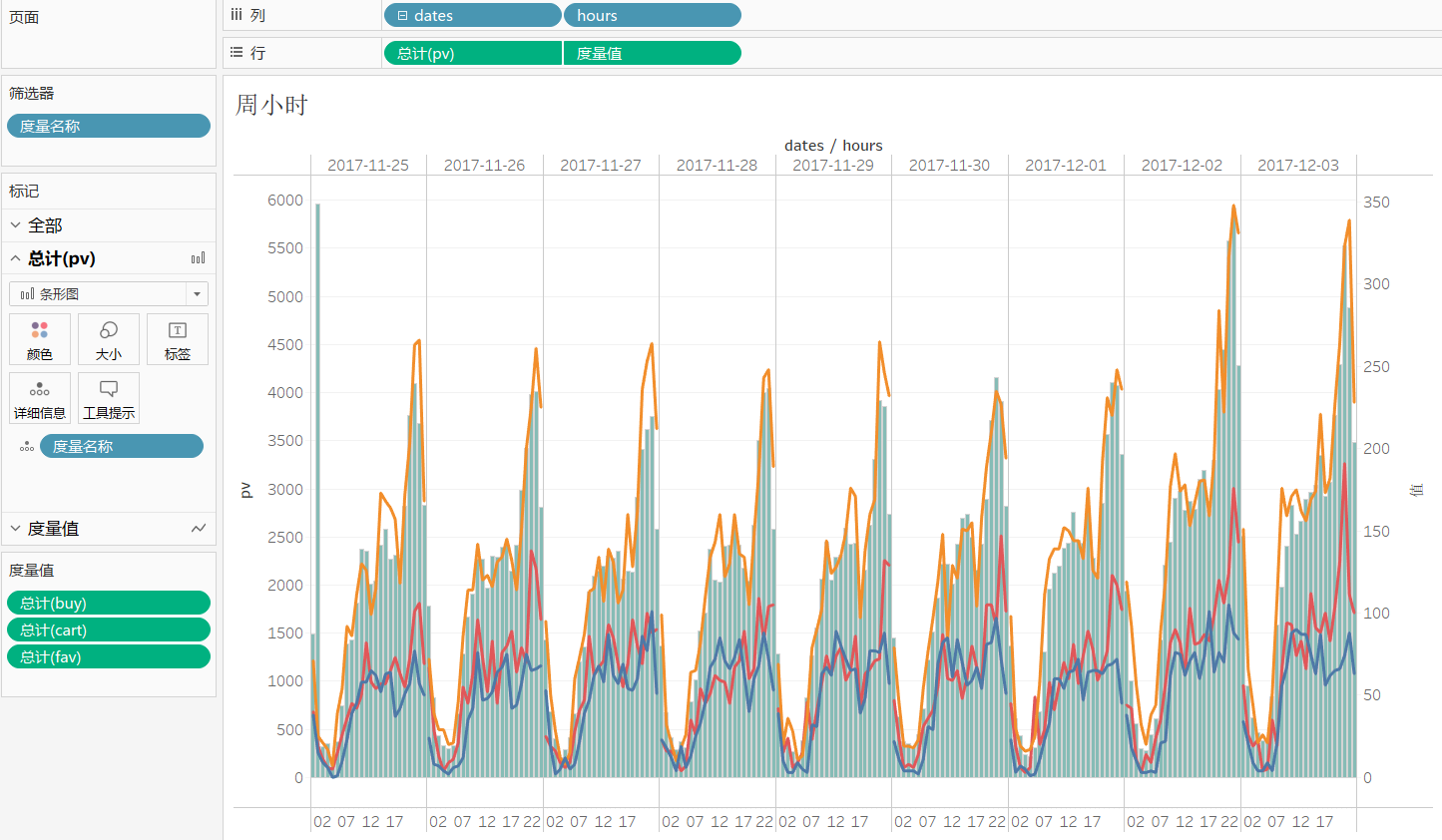

2.3 共同分析用户的周内行为和小时行为

【MySQL实战】基于100万电商用户的1亿条行为数据分析——自发秩序

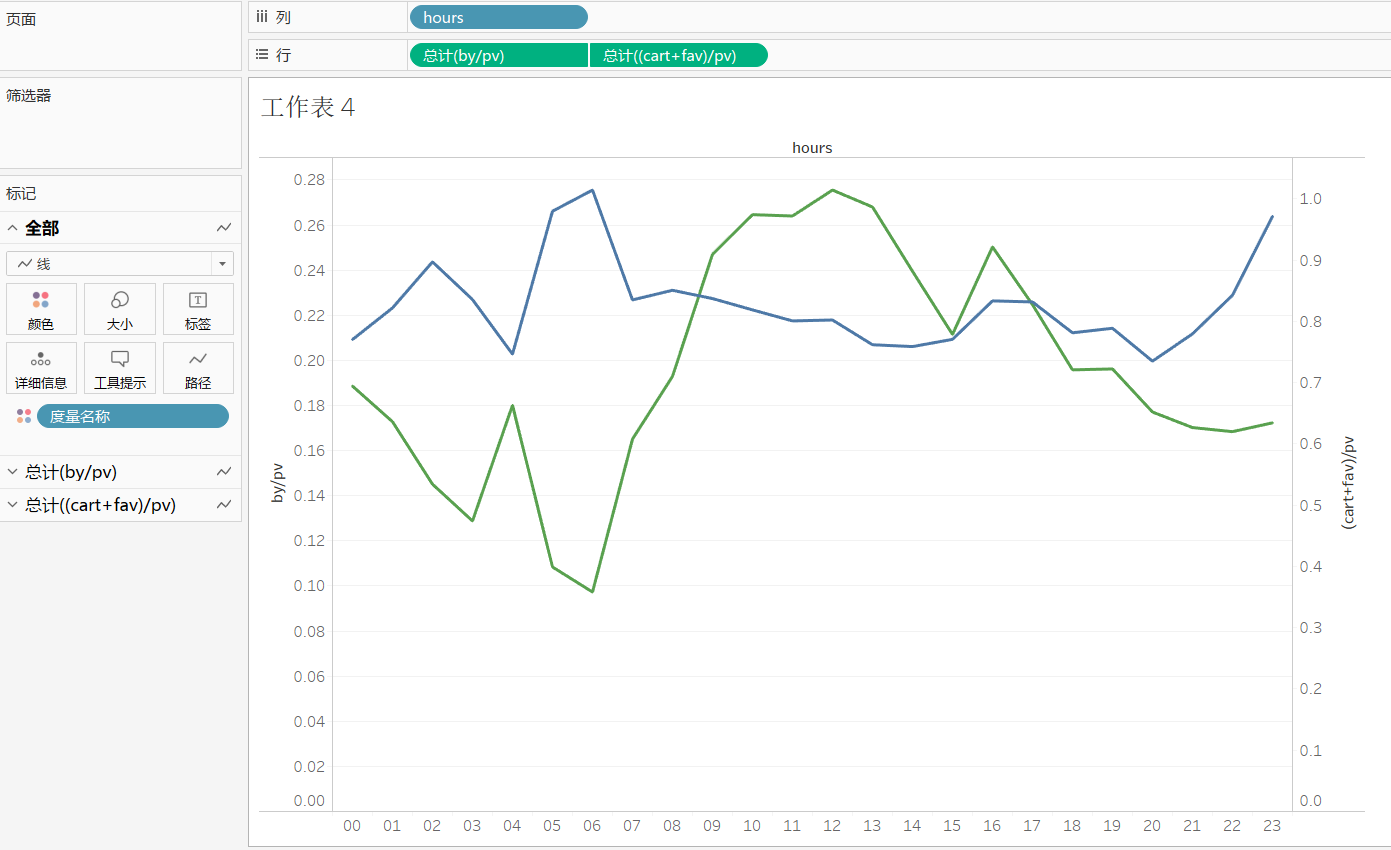

2.4 分析用户下单购买的概率

用户转化率分析（list23）

【MySQL实战】基于100万电商用户的1亿条行为数据分析——自发秩序

-- 统计各类行为用户数
SELECT behavior_type,
            COUNT(DISTINCT user_id) use_num
FROM temp_behavior
GROUP BY behavior_type
ORDER BY behavior_type DESC

-- 存储
CREATE TABLE behavior_user_num AS
SELECT behavior_type,
            COUNT(DISTINCT user_id) use_num
FROM user_behavior
GROUP BY behavior_type
ORDER BY behavior_type DESC

SELECT * FROM behavior_user_num

-- 0.6631(购买概率)
SELECT 3444/5194

-- 统计各类行为的数量
SELECT behavior_type,
        COUNT(*) behavior_count_num
FROM temp_behavior
GROUP BY behavior_type
ORDER BY behavior_type DESC

-- 储存数据
CREATE TABLE behavior_num AS
SELECT behavior_type,
           COUNT(*) behavior_count_num
FROM user_behavior
GROUP BY behavior_type
ORDER BY behavior_type DESC

SELECT * FROM behavior_num

-- buy/pv 0.0228
SELECT 10226/448998
-- (fav+cart)/pv 0.0903
SELECT (13013+27542)/448998

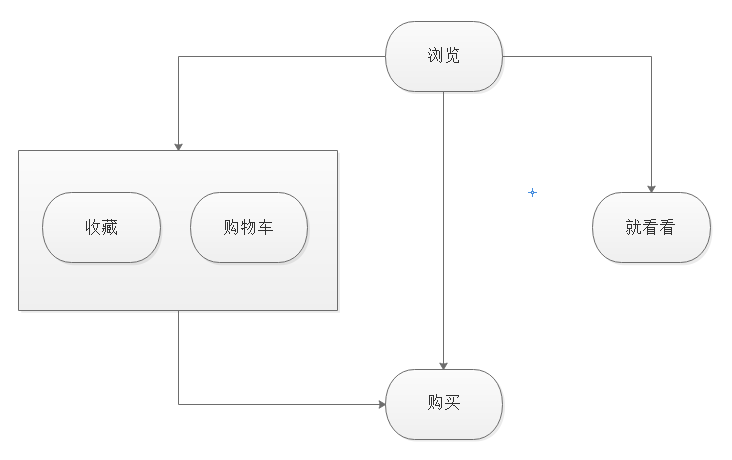

行为路径分析（list24）

-- 删除后面使用temp_behavior创建的视图，并使用原表进行视图的再次创建
DROP VIEW user_behavior_view
DROP VIEW user_behavior_standard
DROP VIEW user_behavior_path
DROP VIEW path_count

-- 在查询中对字段内的内容进行筛选可用if
CREATE VIEW user_behavior_view AS
SELECT user_id,item_id,
        COUNT(IF(behavior_type = 'pv',behavior_type,NULL)) pv,
        COUNT(IF(behavior_type = 'cart',behavior_type,NULL)) cart,
        COUNT(IF(behavior_type = 'fav',behavior_type,NULL)) fav,
        COUNT(IF(behavior_type = 'buy',behavior_type,NULL)) buy
FROM temp_behavior
GROUP BY user_id,item_id

-- 用户行为标准化
CREATE VIEW user_behavior_standard AS
SELECT user_id,item_id,
            (CASE WHEN pv>0 THEN 1 ELSE 0 END) '浏览了',
            (CASE WHEN fav>0 THEN 1 ELSE 0 END) '收藏了',
            (CASE WHEN cart>0 THEN 1 ELSE 0 END) '加购了',
            (CASE WHEN buy>0 THEN 1 ELSE 0 END) '购买了'
FROM user_behavior_view

-- 路径类型
CREATE VIEW user_behavior_path AS
SELECT *,
CONCAT(浏览了,收藏了,加购了,购买了) 购买路径类型
FROM user_behavior_standard AS a
WHERE a.购买了> 0

-- 统计各类购买行为数量
CREATE VIEW path_count AS
SELECT 购买路径类型,count(*) 数量
FROM user_behavior_path
GROUP BY 购买路径类型
ORDER BY 数量 DESC

-- 解释表
CREATE TABLE explanation(
path_type char(4),
description VARCHAR(40)
)

INSERT INTO explanation
VALUES('0001','直接购买'),
            ('1001','浏览后购买'),
            ('0011','加购后购买'),
            ('1011','浏览加购后购买'),
            ('0101','收藏后购买'),
            ('1101','浏览收藏后购买'),
            ('0111','收藏加购后购买'),
            ('1111','浏览收藏加购后购买')

SELECT * FROM explanation

SELECT * FROM explanation e
JOIN path_count pc
ON pc.购买路径类型 = e.path_type
ORDER BY 数量 DESC

-- 使用原始表

-- 在查询中对字段内的内容进行筛选可用if
CREATE VIEW user_behavior_view AS
SELECT user_id,item_id,
        COUNT(IF(behavior_type = 'pv',behavior_type,NULL)) pv,
        COUNT(IF(behavior_type = 'cart',behavior_type,NULL)) cart,
        COUNT(IF(behavior_type = 'fav',behavior_type,NULL)) fav,
        COUNT(IF(behavior_type = 'buy',behavior_type,NULL)) buy
FROM user_behavior
GROUP BY user_id,item_id

-- 用户行为标准化
CREATE VIEW user_behavior_standard AS
SELECT user_id,item_id,
            (CASE WHEN pv>0 THEN 1 ELSE 0 END) '浏览了',
            (CASE WHEN fav>0 THEN 1 ELSE 0 END) '收藏了',
            (CASE WHEN cart>0 THEN 1 ELSE 0 END) '加购了',
            (CASE WHEN buy>0 THEN 1 ELSE 0 END) '购买了'
FROM user_behavior_view

-- 路径类型
CREATE VIEW user_behavior_path AS
SELECT *,
CONCAT(浏览了,收藏了,加购了,购买了) 购买路径类型
FROM user_behavior_standard AS a
WHERE a.购买了> 0

-- 统计各类购买行为数量
CREATE VIEW path_count AS
SELECT 购买路径类型,count(*) 数量
FROM user_behavior_path
GROUP BY 购买路径类型
ORDER BY 数量 DESC

-- 解释表
CREATE TABLE explanation(
path_type char(4),
description VARCHAR(40)
)

INSERT INTO explanation
VALUES('0001','直接购买'),
            ('1001','浏览后购买'),
            ('0011','加购后购买'),
            ('1011','浏览加购后购买'),
            ('0101','收藏后购买'),
            ('1101','浏览收藏后购买'),
            ('0111','收藏加购后购买'),
            ('1111','浏览收藏加购后购买')

SELECT * FROM explanation

SELECT * FROM explanation e
JOIN path_count pc
ON pc.购买路径类型 = e.path_type
ORDER BY 数量 DESC

CREATE TABLE path_result AS
SELECT path_type,description,数量
FROM explanation e
JOIN path_count pc
ON pc.购买路径类型 = e.path_type
ORDER BY 数量 DESC

SELECT *
FROM path_result

-- 购买但没有收藏加购的购买数量 7785
SELECT sum(buy)
FROM user_behavior_view
WHERE buy>0 AND fav=0 AND cart=0
-- 总购买量 10226
-- 收藏加购后购买量 2441
-- 收藏加购 13013+27542
-- 收藏加购后购买的概率 0.0602
SELECT 2441/(13013+27542)

RFM模型（list28）

【MySQL实战】基于100万电商用户的1亿条行为数据分析——自发秩序

Original: https://blog.csdn.net/tossing_a_coin/article/details/124420284
Author: tossing_a_coin
Title: 【MySQL实战】基于100万电商用户的1亿条行为数据分析——自发秩序

Title: Numpy报错：ImportError: numpy.core.multiarray failed to import

导入自定义的 python 模块时，出现以下报错：

ImportError: numpy.core.multiarray failed to import

    from .cv2 import *
ImportError: numpy.core.multiarray failed to import

原因：

numpy 版本过低或者过高

解决：

查看numpy 版本： pip show numpy
我当前环境中的 numpy 版本是： Version: 1.16.5
升级： pip install -U numpy

(tensorflow) Robin-macbook-pro:~ robin$ pip install -U numpy
Collecting numpy
  Downloading https://files.pythonhosted.org/packages/6a/9d/984f87a8d5b28b1d4afc042d8f436a76d6210fb582214f35a0ea1db3be66/numpy-1.19.5-cp36-cp36m-macosx_10_9_x86_64.whl (15.6MB)
     |████████████████████████████████| 15.6MB 1.3MB/s
ERROR: tensorflow 1.13.1 has requirement protobuf>=3.6.1, but you'll have protobuf 3.6.0 which is incompatible.

Installing collected packages: numpy
  Found existing installation: numpy 1.16.5
    Uninstalling numpy-1.16.5:
      Successfully uninstalled numpy-1.16.5
Successfully installed numpy-1.19.5

结果还是不行，遂给 numpy 降级： pip install -U numpy==1.14.0（之前是 1.16.5）

不仅造成了不少冲突，而且没效果：

(tensorflow) Robin-macbook-pro:~ robin$ pip install -U numpy==1.14.0
Collecting numpy==1.14.0
  Downloading https://files.pythonhosted.org/packages/33/c4/1ea5344793c159556110e42c94c9374cb08ce2a2727374cd467bd97f6579/numpy-1.14.0-cp36-cp36m-macosx_10_6_intel.macosx_10_9_intel.macosx_10_9_x86_64.macosx_10_10_intel.macosx_10_10_x86_64.whl (4.7MB)
     |████████████████████████████████| 4.7MB 230kB/s
ERROR: tensorflow 1.13.1 has requirement protobuf>=3.6.1, but you'll have protobuf 3.6.0 which is incompatible.

ERROR: pmdarima 1.3.0 has requirement numpy>=1.16, but you'll have numpy 1.14.0 which is incompatible.

ERROR: phik 0.9.8 has requirement numpy>=1.15.4, but you'll have numpy 1.14.0 which is incompatible.

ERROR: librosa 0.8.0 has requirement numpy>=1.15.0, but you'll have numpy 1.14.0 which is incompatible.

ERROR: astropy 4.0 has requirement numpy>=1.16, but you'll have numpy 1.14.0 which is incompatible.

Installing collected packages: numpy
  Found existing installation: numpy 1.19.5
    Uninstalling numpy-1.19.5:
      Successfully uninstalled numpy-1.19.5
Successfully installed numpy-1.14.0

还是不行：

将numpy更到最新版本： pip install -U numpy，
同时更新 opencv 的版本试试，这是当前版本：

【MySQL实战】基于100万电商用户的1亿条行为数据分析——自发秩序
本身就是最新版本，尝试过没用。

【MySQL实战】基于100万电商用户的1亿条行为数据分析——自发秩序后来发现，问题在于

① import numpy as numpy
会报错： ImportError: numpy.core.multiarray failed to import
② import cv2
会报错： AttributeError: module 'logging' has no attribute 'Handler'

最后发现，最为离奇诡异的是，在不同的文件夹下面执行相同的代码（ import numpy as np）是没有任何问题的

（1）

/Users/robin/software/anaconda3/envs/tensorflow/bin/python3.6 /Users/robin/MLcode/Pycharm_Project/tensorflow/2021/0823_face_recognition_environment/test.py

Process finished with exit code 0

（2）

/Users/robin/software/anaconda3/envs/tensorflow/bin/python3.6 /Users/robin/MLcode/Pycharm_Project/tensorflow/2021/0823_face_recognition_environment/ui/test.py
Traceback (most recent call last):
  File "/Users/robin/MLcode/Pycharm_Project/tensorflow/2021/0823_face_recognition_environment/ui/test.py", line 1, in <module>
    import numpy as np
  File "/Users/robin/software/anaconda3/envs/tensorflow/lib/python3.6/site-packages/numpy/__init__.py", line 187, in <module>
    from .testing import Tester
  File "/Users/robin/software/anaconda3/envs/tensorflow/lib/python3.6/site-packages/numpy/testing/__init__.py", line 10, in <module>
    from unittest import TestCase
  File "/Users/robin/software/anaconda3/envs/tensorflow/lib/python3.6/unittest/__init__.py", line 59, in <module>
    from .case import (TestCase, FunctionTestCase, SkipTest, skip, skipIf,
  File "/Users/robin/software/anaconda3/envs/tensorflow/lib/python3.6/unittest/case.py", line 278, in <module>
    class _CapturingHandler(logging.Handler):
AttributeError: module 'logging' has no attribute 'Handler'

Process finished with exit code 1

最后我放弃治疗了，新建了一个文件夹，将文件移动过去了，就当做 Pycharm 抽风了吧

浪费一下午时间...！！！！

Original: https://blog.csdn.net/Robin_Pi/article/details/120544691
Author: Robin_Pi
Title: Numpy报错：ImportError: numpy.core.multiarray failed to import
