（作为一名研一学生，刚接触视觉处理4个月，如果说的或者代码有什么错误，还请谅解，帮我指正，多谢！）

胶囊网络是由Hiton在2017年提出，原文名为Dynamic Routing Between Capsules。该论文具体的内容和理解就不多说了，我最初也是从两个链接学习后，再看论文了解细节。不知道是不是我太菜了，Hiton的论文读起来比较费劲。

链接1：胶囊网络：更强的可解释性 - 知乎 (zhihu.com)https://zhuanlan.zhihu.com/p/264910554 ;

链接2：看完这篇，别说你还不懂Hinton大神的胶囊网络 (sohu.com)https://www.sohu.com/a/226611009_633698 ;

原本想找现成的代码学习一下，但是由于我用的是tensorflow2.5.0版本，目前所有的代码我暂时没有找到tf2版本，所以只能参考tf1版本的代码自己复现一遍。我的代码没有把解码器和图片遮挡功能写进去，应该不难。

一、张量计算

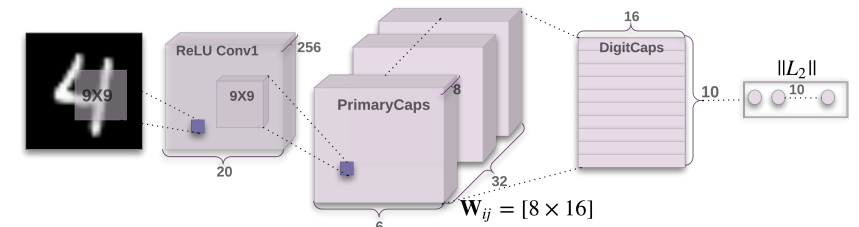

我觉得胶囊网络最麻烦的地方还是在于张量的计算，它需要计算的张量维度都比较高，在学习的时候比较难理解，在这我配合图片和代码讲解一下。

第一层是卷积层应该不难理解，卷积的作用主要是提取特征，输出特征图形状[-1,20,20,256]。（说明一下，我用-1来表示输入的batchsize）

class CapsuleNetwork(Model):
    def __init__(self):
        super(CapsuleNetwork, self).__init__()
        self.conv1 = layers.Conv2D(filters=256, kernel_size=[9, 9], strides=1, padding='valid', activation=tf.nn.relu)
        self.prim_cap = PrimCap()
        self.digit_cap = DigitCap()

    def call(self, inputs):
        # 第1次卷积，256个卷积核，输出256个特征图[-1, 20, 20, 256]
        out = self.conv1(inputs)
        # 初级胶囊层
        # out = self.conv2(out)
        out = self.prim_cap(out)
        # 数字胶囊层
        out = self.digit_cap(out)
        out = tf.nn.softmax(out, axis=1)
        return out

第二层是初级胶囊层，内部含有一次卷积和reshape操作。卷积提出形状为[-1,6,6,256]的特征图。重点来了，初级胶囊被分为32个类（而不是32个胶囊，我一开始一直没有理解），每1个类都有8张6x6的特征图。每1个胶囊则是8个特征图在同一个位置的元素组成的[8，1]的向量，这个向量可以理解为位置向量，因此胶囊数为6x6x32=1152个。由于minst数据总共有10类，因此将胶囊复制10次（config.class_num），最后初级胶囊层的输出形状为[-1,1152,10,8,1]。

class PrimCap(Layer):
    def __init__(self):
        super(PrimCap, self).__init__()
        self.conv2 = layers.Conv2D(filters=256, kernel_size=[9, 9], strides=2)

    def call(self, inputs):
        # 初级胶囊层
        capsules = self.conv2(inputs)
        capsules = tf.reshape(capsules, [-1, 6, 6, 8, 32])
        capsules = tf.transpose(capsules, [0, 4, 3, 1, 2])
        capsules = tf.reshape(capsules, [-1, 1152, 1, 8, 1])
        capsules = tf.tile(capsules, [1, 1, config.class_num, 1, 1])
        return capsules

第三层是数字胶囊层（动态路由），输入[-1,1152,10,8,1]形状的胶囊，每个胶囊都要经过[-1,1152,10,16,8]的姿态矩阵wij变换为预测胶囊的位置向量uhat（预测胶囊的位置向量形状为[16,1]），uhat形状为[-1,1152,16,10]。其中，wij的形状为[1,1152,10,16,8]，由于batch中每一个wij都是一样的，所以在初始化wij时wij.shape[0]=1，在call里复制成[-1,1152,10,16,8]。bij是低级胶囊i对高级胶囊j的支持程度，bij.shape=[-1,1152,16,10]，初始值均为0。cij=softmax(bij)，将支持程度转变为概率。根据下列公式获得s（将1152这维全部相加）后，通过squash函数算得vij（vij.shape=[-1,10,16]）。

此后，将vij复制1152次，得到vIJ，并根据bij= bij + vIJ * uhat来更新bij，并输出vij。将以上路由操作循环三次后，计算vij每一类的模[-1，10]，将其通过softmax计算得出每一类的概率。

class DigitCap(Layer):
    def __init__(self):
        super(DigitCap, self).__init__()

    def build(self, input_shape):
        # 初始化姿态矩阵[1, 1152, 10, 16, 8]
        self.shape = input_shape
        self.wij = self.add_weight(name='wij', dtype=tf.float32, shape=[1, 1152, config.class_num, 16, 8], initializer=tf.random_normal_initializer())

    def call(self, inputs):
        # 数字胶囊层
        bij = tf.zeros([self.shape[0], 1152, 16, config.class_num])
        wij = self.wij
        wij = tf.tile(wij, [self.shape[0], 1, 1, 1, 1])
        for i in range(3):
            bij, capsules = capsule(inputs, bij, wij, self.shape[0])
        return capsules

def capsule(inputs, bij, wij, batch):
    # ui.shape = [1, 1152, 10, 8, 1]
    ui = inputs
    # c.shape =[1, 1152, 16, 10]
    c = tf.nn.softmax(bij, 3)
    # wij.shape = [-1, 1152, 10, 16, 8] ui.shape = [1, 1152, 8, 1]
    # uhat.shape = [-1, 1152, 16, 10]
    # print(wij.shape, ui.shape)
    uhat = tf.matmul(wij, ui)
    uhat = tf.squeeze(uhat, 4)
    uhat = tf.transpose(uhat, [0, 1, 3, 2])
    # s.shape = [-1, 1152, 16, 10]
    s = tf.reduce_sum(c * uhat, 1)
    # print('s', s.shape)
    # vij.shape = [-1, 16, 10]
    vij = squash(s)
    # 为计算方便，将v扩充成vIJ  vIJ.shape = [-1, 1152, 16, 10]
    vIJ = tf.reshape(vij, [-1, 1, 16, config.class_num])
    vIJ = tf.tile(vIJ, [1, 1152, 1, 1])
    bij += vIJ * uhat
    vij = tf.squeeze(tf.norm(vij, axis=1, keepdims=2), 1)
    # print('vij', vij.shape)
    return bij, vij

二、tf2隐藏坑

最初想直接利用model.compile来导入自定义损失函数，但是无论是用def定义的还是class定义的损失函数，最后训练结果都不太正常，精度只有10%左右（不知道有没有大神知道具体原因在哪）。但是有两个解决方案：

1、在model内覆写train_step，不使用self.compiled_loss，直接将定义的损失函数代进去算loss。

class CapsuleNetwork(Model):
    def __init__(self):
        super(CapsuleNetwork, self).__init__()
        self.conv1 = layers.Conv2D(filters=256, kernel_size=[9, 9], strides=1, padding='valid', activation=tf.nn.relu)
        self.prim_cap = PrimCap()
        self.digit_cap = DigitCap()

    def train_step(self, data):
        # 解包数据，由fit()传入
        x, y = data

        with tf.GradientTape() as tape:
            y_pred = self(x, training=True)  # 前向传播
            # 计算损失
            # (损失函数由`compile()`导入)
            # loss_b = self.compiled_loss(y, y_pred, regularization_losses=self.losses)
            loss_value = loss()(y, y_pred)

        # 计算梯度
        trainable_vars = self.trainable_variables
        gradients = tape.gradient(loss_value, trainable_vars)
        # 更新权重
        self.optimizer.apply_gradients(zip(gradients, trainable_vars))
        # 更新精度
        self.compiled_metrics.update_state(y, y_pred)
        # 返回现值
        return {m.name: m.result() for m in self.metrics}

    def call(self, inputs):
        # 第1次卷积，256个卷积核，输出256个特征图[1, 20, 20, 256]
        out = self.conv1(inputs)
        # 初级胶囊层
        # out = self.conv2(out)
        out = self.prim_cap(out)
        # 数字胶囊层
        out = self.digit_cap(out)
        out = tf.nn.softmax(out, axis=1)
        return out

2、不在model内，从模型外部进行自定义一个训练函数

def training(model, data_train, data_test, epochs, optimizer):
    for epoch in range(epochs):
        for step, (x, y) in enumerate(data_train):
            with tf.GradientTape() as tape:
                logits = model(x)
                y_onehot = tf.one_hot(y, depth=config.class_num)
                loss = margin_loss(y_onehot, logits)
            grads = tape.gradient(loss, model.trainable_variables)
            optimizer.apply_gradients(zip(grads, model.trainable_variables))

        if data_test is not None:
            # test
            total_correct = 0
            total_num = 0
            for x, y in data_test:
                logits = model(x)
                # prob = tf.nn.softmax(logits, axis=1)
                pred = tf.argmax(logits, axis=1)
                pred = tf.cast(pred, dtype=tf.int32)
                correct = tf.equal(pred, y)
                correct = tf.reduce_sum(tf.cast(correct, dtype=tf.int32))
                total_correct += int(correct)
                total_num += x.shape[0]

            acc = total_correct / total_num
            print('Epoch:', epoch, 'Test_Acc:', acc, 'Loss:', float(loss))
            print(total_correct, total_num)

[填坑]：由于MNIST数据集的标签是0-9的数字，需要先将标签改成one-hot形式再输入到model.fit中，原先定义的loss中需要把one-hot删掉，这样train-step就不用覆写了。

此外还发现一个问题，tf.maximum()内如果要用整数一定要在最后加小数点，（比如：0.）。

三、代码使用

我将代码分成三个py程序，第一个是模型，第二个是层，第三个是配置。在使用的时候，把三个程序放在同一个project里，运行capnet即可。

程序一：capnet.py

import tensorflow as tf
from tensorflow.keras import layers, Model, metrics
from tensorflow.keras.losses import Loss
from caplayers import PrimCap
from caplayers import DigitCap
import config

# 归一化
def preprocess(x, y):
    x = tf.cast(x, dtype=tf.float32)/255
    y = tf.cast(y, dtype=tf.int32)
    return x, y

class CapsuleNetwork(Model):
    def __init__(self):
        super(CapsuleNetwork, self).__init__()
        self.conv1 = layers.Conv2D(filters=256, kernel_size=[9, 9], strides=1, padding='valid', activation=tf.nn.relu)
        self.prim_cap = PrimCap()
        self.digit_cap = DigitCap()

    def train_step(self, data):
        # 解包数据，由fit()传入
        x, y = data

        with tf.GradientTape() as tape:
            y_pred = self(x, training=True)  # 前向传播
            # 计算损失
            # (损失函数由`compile()`导入)
            # loss_b = self.compiled_loss(y, y_pred, regularization_losses=self.losses)
            loss_value = loss()(y, y_pred)

        # 计算梯度
        trainable_vars = self.trainable_variables
        gradients = tape.gradient(loss_value, trainable_vars)
        # 更新权重
        self.optimizer.apply_gradients(zip(gradients, trainable_vars))
        # 更新精度
        self.compiled_metrics.update_state(y, y_pred)
        # 返回现值
        return {m.name: m.result() for m in self.metrics}

    def call(self, inputs):
        # 第1次卷积，256个卷积核，输出256个特征图[1, 20, 20, 256]
        out = self.conv1(inputs)
        # 初级胶囊层
        # out = self.conv2(out)
        out = self.prim_cap(out)
        # 数字胶囊层
        out = self.digit_cap(out)
        out = tf.nn.softmax(out, axis=1)
        return out

# margin损失
class loss(Loss):
    def call(self, y_true, y_pred):
        y_true = tf.one_hot(y_true, config.class_num)
        y_pred = tf.cast(y_pred, dtype=tf.float32)
        m_max = tf.constant(0.9, tf.float32)
        m_min = tf.constant(0.1, tf.float32)
        L = y_true * tf.square(tf.maximum(0., m_max - y_pred)) + 0.5 * (1 - y_true) * tf.square(tf.maximum(0., y_pred - m_min))
        L = tf.reduce_mean(tf.reduce_sum(L, 1))
        return L

def margin_loss(y_true, y_pred):
    y_true = tf.cast(y_true, dtype=tf.float32)
    y_pred = tf.cast(y_pred, dtype=tf.float32)
    m_max = tf.constant(0.9, tf.float32)
    m_min = tf.constant(0.1, tf.float32)
    L = y_true * tf.square(tf.maximum(0., m_max - y_pred)) + 0.5 * (1 - y_true) * tf.square(tf.maximum(0., y_pred - m_min))
    L = tf.reduce_mean(tf.reduce_sum(L, 1))
    return L

# 训练函数，目前使用model.fit
def training(model, data_train, data_test, epochs, optimizer):
    for epoch in range(epochs):
        for step, (x, y) in enumerate(data_train):
            with tf.GradientTape() as tape:
                logits = model(x)
                y_onehot = tf.one_hot(y, depth=config.class_num)
                loss = margin_loss(y_onehot, logits)
            grads = tape.gradient(loss, model.trainable_variables)
            optimizer.apply_gradients(zip(grads, model.trainable_variables))

        if data_test is not None:
            # test
            total_correct = 0
            total_num = 0
            for x, y in data_test:
                logits = model(x)
                # prob = tf.nn.softmax(logits, axis=1)
                pred = tf.argmax(logits, axis=1)
                pred = tf.cast(pred, dtype=tf.int32)
                correct = tf.equal(pred, y)
                correct = tf.reduce_sum(tf.cast(correct, dtype=tf.int32))
                total_correct += int(correct)
                total_num += x.shape[0]

            acc = total_correct / total_num
            print('Epoch:', epoch, 'Test_Acc:', acc, 'Loss:', float(loss))
            print(total_correct, total_num)

def main():
    # 载入mnist
    (x_train, y_train), (x_test, y_test) = tf.keras.datasets.mnist.load_data()

    x_train = tf.reshape(x_train, [-1, 28, 28, 1])
    x_train, y_train = preprocess(x_train, y_train)

    x_test = tf.reshape(x_test, [-1, 28, 28, 1])
    x_test, y_test = preprocess(x_test, y_test)

    db_train = tf.data.Dataset.from_tensor_slices((x_train, y_train))
    db_test = tf.data.Dataset.from_tensor_slices((x_test, y_test))
    db_train = db_train.batch(config.batch_size)
    db_test = db_test.batch(config.batch_size)

    model = CapsuleNetwork()
    model.build(input_shape=[1, 28, 28, 1])
    model.summary()

    optimizers = tf.optimizers.Adam(learning_rate=config.lr)

    # training(model, db_train, db_test, config.epochs, optimizers)

    model.compile(optimizer=optimizers, loss=loss(), metrics='Accuracy')
    model.fit(x_train, y_train, config.batch_size,  validation_data=(x_test, y_test), epochs=config.epochs)

if __name__ == '__main__':
    main()

程序二：caplayers.py

import tensorflow as tf
from tensorflow.keras.layers import Layer
from tensorflow.keras import layers
import config

# 归一化
def preprocess(x, y):
    x = tf.cast(x, dtype=tf.float32)/255
    y = tf.cast(y, dtype=tf.int32)
    return x, y

class PrimCap(Layer):
    def __init__(self):
        super(PrimCap, self).__init__()
        self.conv2 = layers.Conv2D(filters=256, kernel_size=[9, 9], strides=2)

    def call(self, inputs):
        # 初级胶囊层
        capsules = self.conv2(inputs)
        capsules = tf.reshape(capsules, [-1, 6, 6, 8, 32])
        capsules = tf.transpose(capsules, [0, 4, 3, 1, 2])
        capsules = tf.reshape(capsules, [-1, 1152, 1, 8, 1])
        capsules = tf.tile(capsules, [1, 1, config.class_num, 1, 1])
        return capsules

class DigitCap(Layer):
    def __init__(self):
        super(DigitCap, self).__init__()

    def build(self, input_shape):
        # 初始化姿态矩阵[1, 1152, 16, 8]
        self.shape = input_shape
        self.wij = self.add_weight(name='wij', dtype=tf.float32, shape=[1, 1152, config.class_num, 16, 8], initializer=tf.random_normal_initializer())

    def call(self, inputs):
        # 数字胶囊层
        bij = tf.zeros([self.shape[0], 1152, 16, config.class_num])
        wij = self.wij
        wij = tf.tile(wij, [self.shape[0], 1, 1, 1, 1])
        for i in range(3):
            bij, capsules = capsule(inputs, bij, wij, self.shape[0])
        return capsules

def capsule(inputs, bij, wij, batch):
    # ui.shape = [1, 1152, 10, 8, 1]
    ui = inputs
    # c.shape =[1, 1152, 16, 10]
    c = tf.nn.softmax(bij, 3)
    # uhatb.shape = [-1, 1152, 16, 10, 1] wij.shape = [-1, 1152, 10, 16, 8] ui.shape = [1, 1152, 8, 1]
    # uhat.shape = [-1, 1152, 16, 10]
    # print(wij.shape, ui.shape)
    uhat = tf.matmul(wij, ui)
    uhat = tf.squeeze(uhat, 4)
    uhat = tf.transpose(uhat, [0, 1, 3, 2])
    # s.shape = [-1, 1152, 16, 10]
    s = tf.reduce_sum(c * uhat, 1)
    # print('s', s.shape)
    # vij.shape = [-1, 16, 10]
    vij = squash(s)
    # 为计算方便，将v扩充成vIJ  vIJ.shape = [-1, 1152, 16, 10]
    vIJ = tf.reshape(vij, [-1, 1, 16, config.class_num])
    vIJ = tf.tile(vIJ, [1, 1152, 1, 1])
    bij += vIJ * uhat
    vij = tf.squeeze(tf.norm(vij, axis=1, keepdims=2), 1)
    # print('vij', vij.shape)
    return bij, vij

# 定义squash激活函数
def squash(s):
    s = tf.reshape(s, [-1, 16, config.class_num])
    l2 = tf.norm(s, axis=2, keepdims=3)
    l2 = tf.tile(l2, [1, 1, 10])
    v = (l2 * s) / (1 + l2**2)
    return v

程序三：config.py

# [database]
batch_size = 128
lr = 1e-3
m = 0.8
class_num = 10
epochs = 100

Original: https://blog.csdn.net/weixin_42906783/article/details/122203582
Author: Conitx
Title: 动态路由胶囊网络的tensorflow2实现

相关阅读

Title: Tensorflow】：could not load dynamic library ‘libcudart.so.11.0‘；dlerror:libcudart.so.11.0的解决方法

一、问题描述

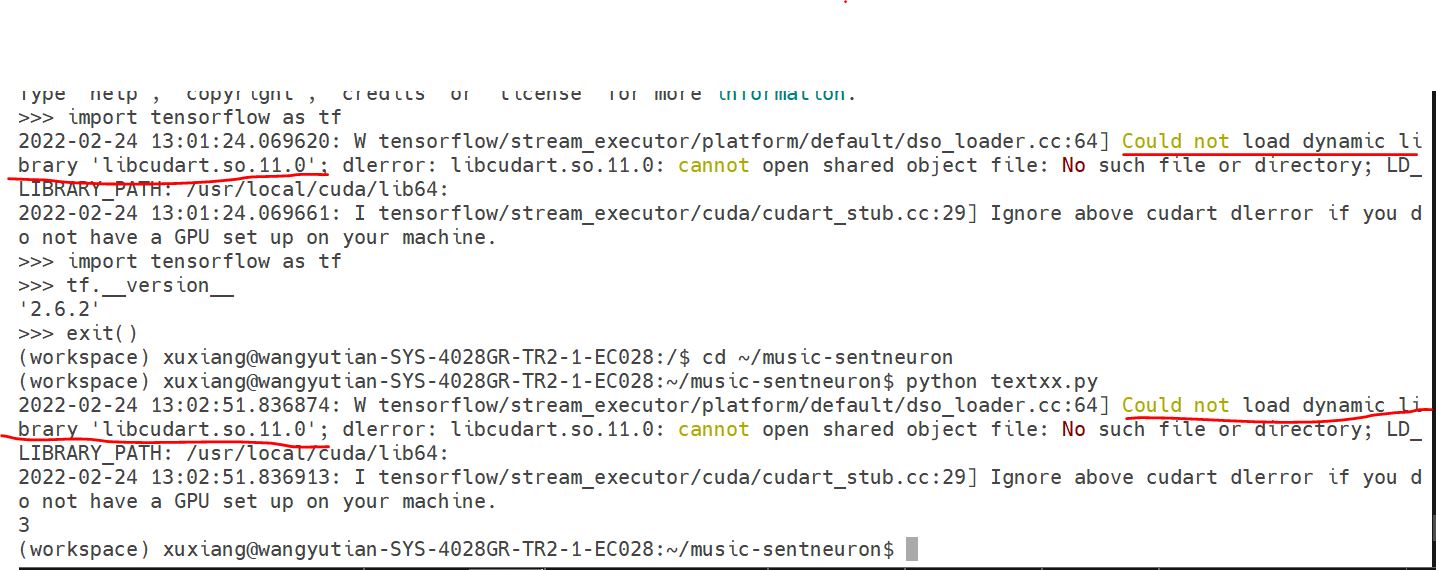

import tensorflow报错如下图
测试：
tf.test.is_built_with_cuda()显示True
tf.test.is_gpu_available() 显示False

; 二、尝试解决之掩耳盗铃

以为是没装cuda，或者是libcudart的路径不对，在多次修改bashrc文件，添加路径失败之后，尝试了一个掩耳盗铃的指令，没有报错。

import os
os.environ['TF_CPP_MIN_LOG_LEVEL']='2'
import tensorflow as tf

用以下指令测试仍显示False，但因为弄这个问题花了一天多，太累了。import tensorflow没保存，而且我没跑程序，就加个屏蔽指令凑合着用吧。

print(tf.test.is_gpu_available() )

三、分析

报错原因：突然开窍，tensorflow could'nt load 'libcudart.so.11.0'是因为tensorflow找不到它要的cuda版本，而不是因为我cuda的路径没设置对，版本不匹配，怎么添加服务器路径都不对。于是开始查相应版本。

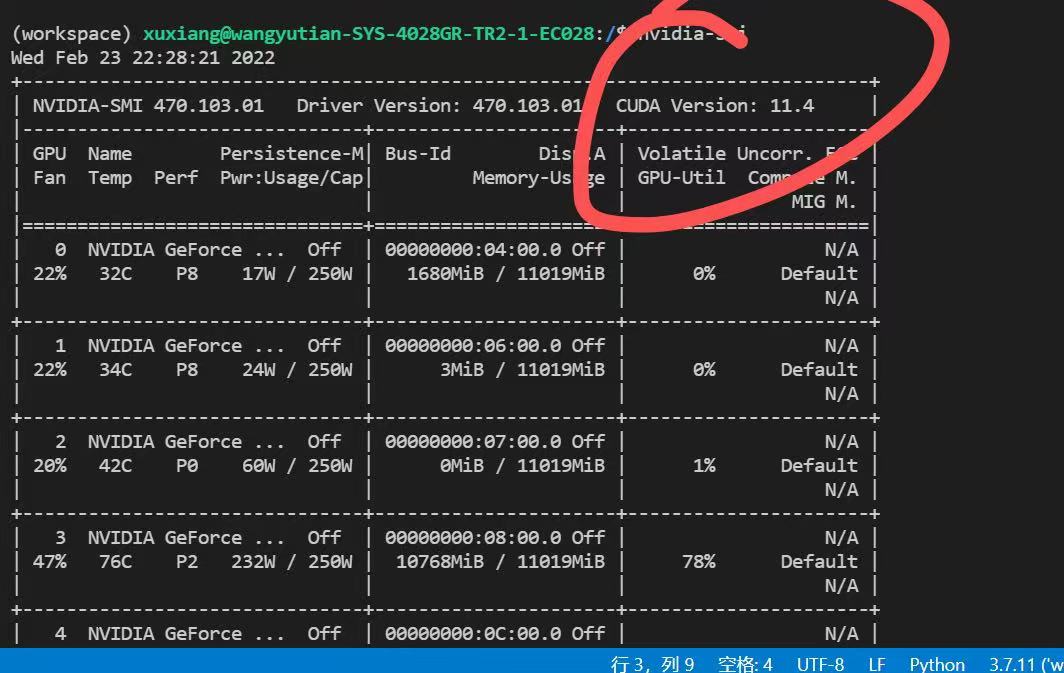

nvidia-smi

pip list
>>>tensorflow==2.6.0，tensorflow-gpu==2.2.0

cat  /usr/local/cuda/version.txt
或 nvcc --version
>>>CUDA version==10.1.243

cat /usr/local/cuda/include/cudnn.h | grep CUDNN_MAJOR -A 2
>>>cuDNN_MAJOR 7
>>>CUDNN_MINOR 6
>>>CUDNN_PATCHLEVEL 5

四、解决

1、在bashrc里面正确添加服务器cuda路径（网上一般都有）

export LD_LIBRARY_PATH=$LD_LIBRARY_PATH:/usr/local/cuda-10.1/lib64
export PATH=$PATH:/usr/local/cuda-10.1/bin
export CUDA_HOME=$CUDA_HOME:/usr/local/cuda-10.1

2、
CUDA10.1 +CUDNN 7 + tensorflow-gpu2.2.0 +python3.6
创建虚拟环境，指定版本

conda create -n tf22 python=3.6

pip install tensorflow-gpu==2.2.0

Original: https://blog.csdn.net/qq_40670510/article/details/123234786
Author: 阿派派大星
Title: Tensorflow】：could not load dynamic library ‘libcudart.so.11.0‘；dlerror:libcudart.so.11.0的解决方法
